Product Details
| 名 称 Name | 货 号 Order No. | 规 格 Model | L | H | B | D |
|---|---|---|---|---|---|---|
| 小压板 (Small) | YB001 | M6 | 52 | 12.5 | 25.4 | 8 |
| YB002 | M8 M10 | 52 | 12.5 | 25.4 | 12 | |
| YB003 | M12 | 63 | 12 | 28 | 14 | |
| YB004 | M14 | 63 | 12 | 28 | 15 | |
| YB005 | M16 | 63 | 15.6 | 31 | 18 | |
| YB006 | M18 M20 | 101 | 19 | 44 | 22 | |
| YB007 | M22 M24 | 150 | 30 | 60 | 25 | |
| YB008 | M30 | 200 | 34 | 74 | 33 | |
| 中压板 (Medium) | YB009 | M6 | 88 | 16 | 25.4 | 8 |
| YB010 | M8 M10 | 88 | 16 | 25.4 | 12 | |
| YB011 | M12 | 101 | 18.5 | 31 | 14 | |
| YB012 | M14 | 101 | 18.5 | 31 | 15 | |
| YB013 | M16 | 101 | 19 | 38 | 18 | |
| YB014 | M18 M20 | 148 | 25 | 44 | 22 | |
| YB015 | M22 M24 | 200 | 35 | 60 | 25 | |
| YB016 | M30 | 250 | 39 | 74 | 33 | |
| 大压板 (Big) | YB017 | M6 | 128 | 19 | 28.5 | 8 |
| YB018 | M8 M10 | 128 | 19 | 28.5 | 12 | |
| YB019 | M12 | 152 | 21.5 | 31 | 14 | |
| YB020 | M14 | 152 | 21.5 | 31 | 15 | |
| YB021 | M16 | 152 | 22 | 38 | 18 | |
| YB022 | M18 M20 | 198 | 28 | 44 | 22 | |
| YB023 | M22 M24 | 255 | 35 | 60 | 25 | |
| YB024 | MM30 | 300 | 39 | 74 | 33 |
| 名 称 Name | 货 号 Order No. | 规 格 Model | L | H | B | D |
|---|---|---|---|---|---|---|
| 小压板 (Small) | YB002 | 5/16" 3/8" | 52 | 12.5 | 25.4 | 12 |
| YB003 | 1/2" | 63 | 12 | 28 | 14 | |
| YB005 | 5/8" | 63 | 15.6 | 31 | 18 | |
| YB006 | 3/4" | 101 | 19 | 44 | 22 | |
| 中压板 (Medium) | YB010 | 5/16" 3/8" | 88 | 16 | 25.4 | 12 |
| YB011 | 1/2" | 101 | 18.5 | 31 | 14 | |
| YB013 | 5/8" | 101 | 19 | 38 | 18 | |
| YB014 | 3/4" | 148 | 25 | 44 | 22 | |
| 大压板 (Big) | YB018 | 5/16" 3/8" | 128 | 19 | 28.5 | 12 |
| YB019 | 1/2" | 152 | 21.5 | 31 | 14 | |
| YB021 | 5/8" | 152 | 22 | 38 | 18 | |
| YB022 | 3/4" | 198 | 28 | 44 | 22 |

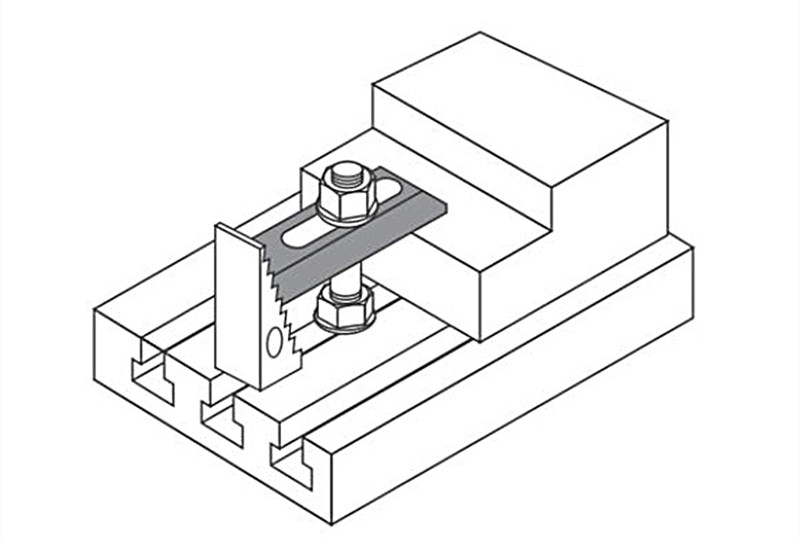

Schematic diagram of how to use the steel clamping
