Product Details
◆ The raw material is preferably high-grade cast iron, and the one-piece casting process is adopted to increase the product strength, rigidity and service life by 30%.
◆ High precision: parallelism 0.005mm, verticality 0.01mm.

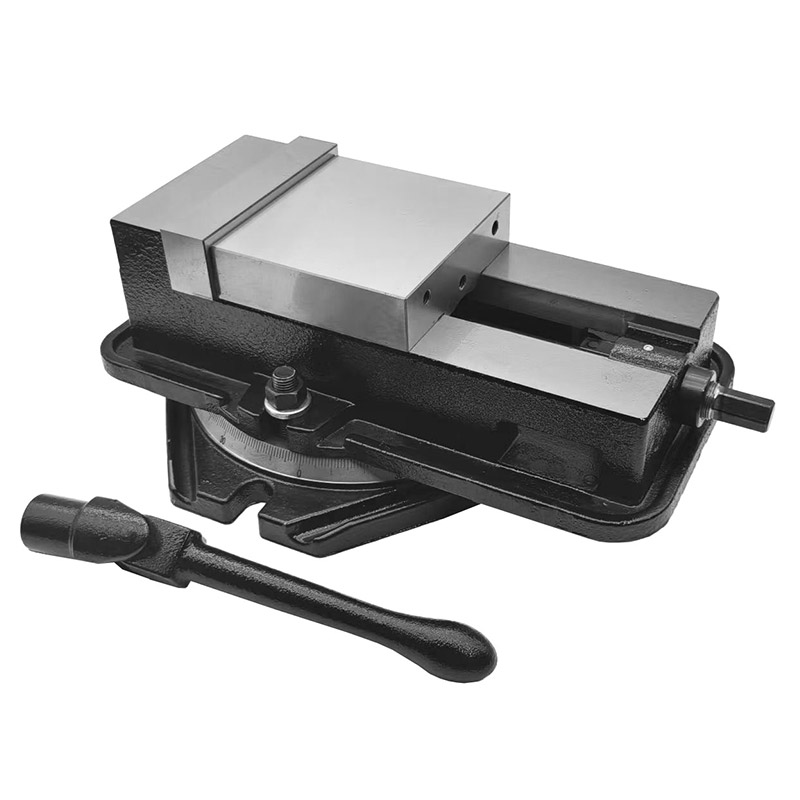

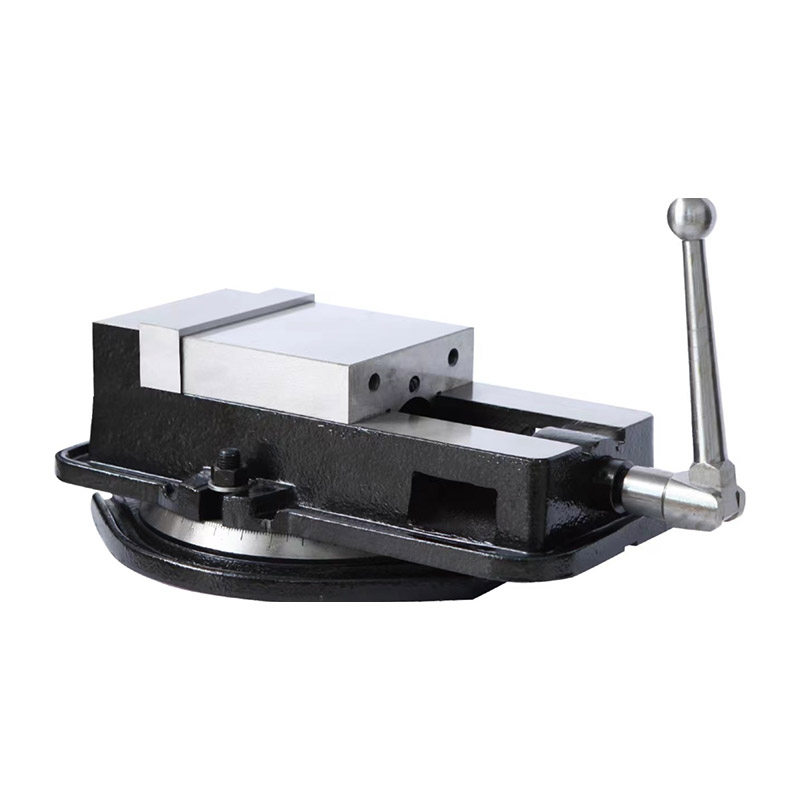

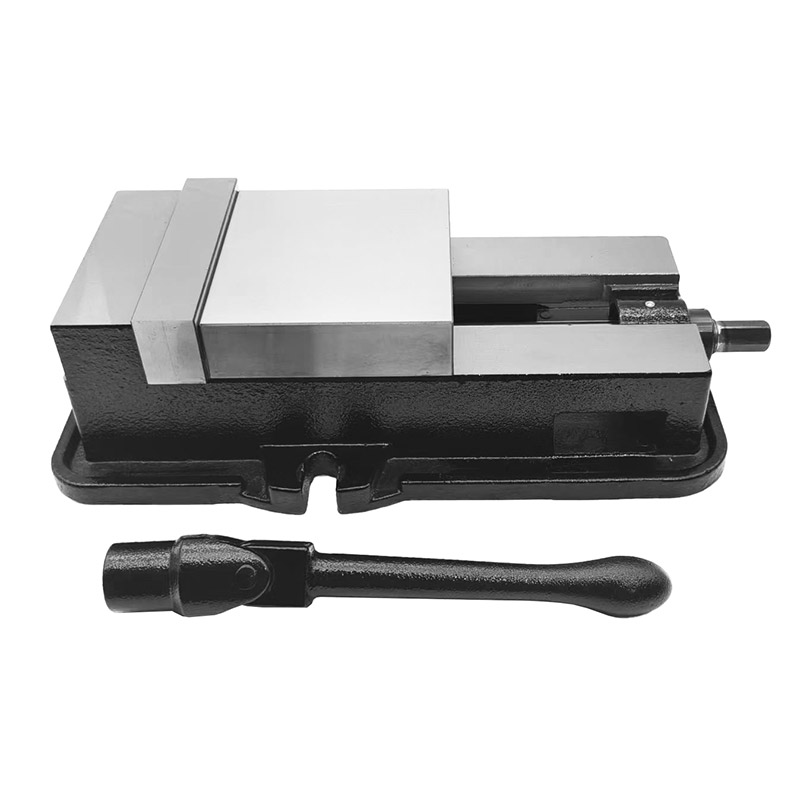

| 精密机用平口钳 Precision Milling Machine Vise | |
|---|---|
| 货号 Order NO. | GPQ-001 |
| 规格 Specification | 6" |

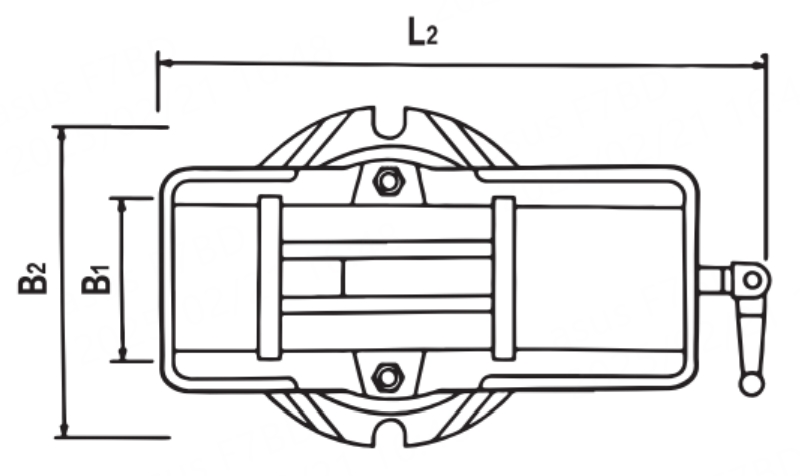

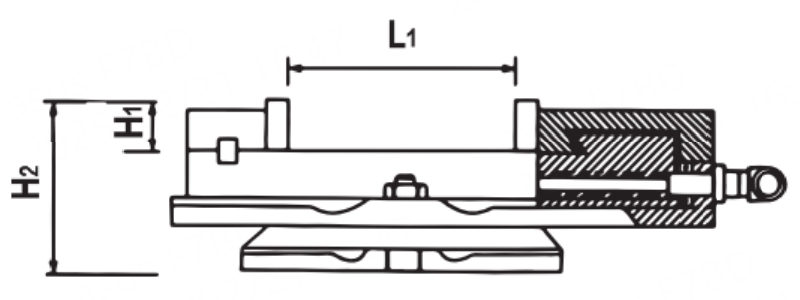

| 有效夹持(L1) Effective clamping | 0-153mm |
| 长度(L2) Length | 450mm |
| 高度(H2) Height | 162mm |
| 宽度(B2) Width | 290mm |
| 钳口高度(H1) Height of vise jaw | 46mm |
| 钳口宽度(B1) Width of vise jaw | 158mm |
| 平行度 Parallelism | 0.005mm |
| 垂直度 Verticality | 0.01mm |
| 重量 Weight | 36kg |
| 包装方式 Package | Carton |
| 包装尺寸 Packaging size | 470mmx310mmx210mm |
