产品详情

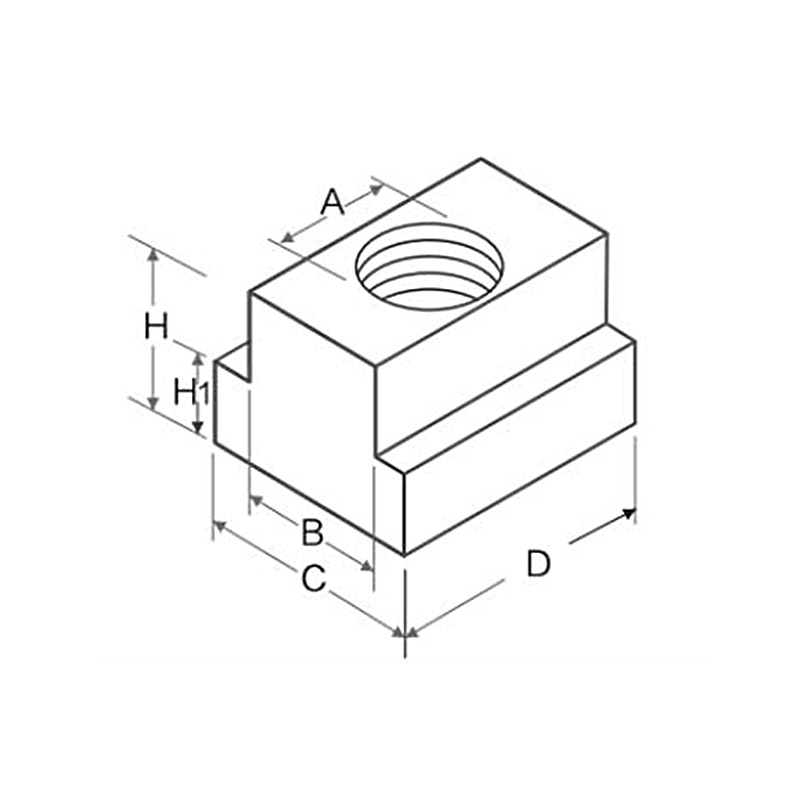

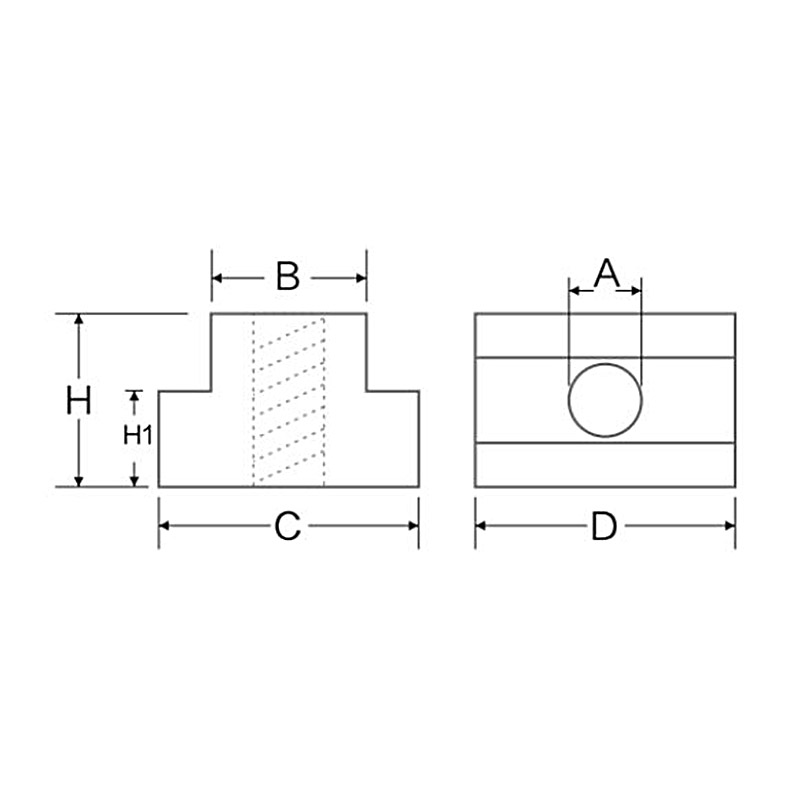

| 货 号 Order No. | 规 格 Model | A | B | H | H₁ | C | D |
|---|---|---|---|---|---|---|---|
| TN-001 | M6 | M6 | 8 | 9 | 5 | 13 | 13 |
| TN-002 | M8 | M8 | 10 | 12 | 5 | 16 | 17 |
| TN-003 | M10 | M10 | 12 | 13 | 6 | 18 | 20 |
| TN-004 | M12 | M12 | 14 | 15 | 8 | 22 | 23 |
| TN-005 | M14 | M14 | 16 | 16 | 8 | 25 | 25 |
| TN-006 | M16 | M16 | 18 | 19 | 10.5 | 28 | 30 |
| TN-007 | M18 | M18 | 20 | 22 | 12 | 31 | 31 |
| TN-008 | M20 | M20 | 22 | 26 | 13 | 35 | 35 |
| TN-009 | M22 | M22 | 26 | 28 | 15 | 40 | 40 |
| TN-010 | M24 | M24 | 28 | 28 | 15 | 44 | 44 |
| TN-012 | M30 | M30 | 36 | 40 | 20 | 54 | 60 |
| 货 号 Order No. | 规 格 Model | A | B | H | H₁ | C | D |
|---|---|---|---|---|---|---|---|
| TN-013 | 5/16"-18 | 5/16"-18 | 3/8" | 1/2" | 3/16" | 5/8" | 7/8" |
| TN-014 | 3/8"-16 | 3/8"-16 | 7/16" | 1/2" | 7/32" | 11/16" | 7/8" |
| TN-015 | 1/2" | 1/2" | 9/32" | 7/8" | 7/8" | ||
| TN-016 | 9/16" | 5/8" | 11/32" | 7/8" | 1" | ||
| TN-017 | 1/2"-12 1/2"-13 | 1/2"-12 1/2"-13 | 9/16" | 5/8" | 11/32" | 7/8" | 1" |
| TN-018 | 5/8" | 5/8" | 11/32" | 1" | 1" | ||
| TN-019 | 11/16" | 3/4" | 7/16" | 1-1/8" | 1-1/4" | ||
| TN-020 | 5/8"-11 | 5/8"-11 | 11/16" | 3/4" | 7/16" | 1-1/8" | 1-1/4" |
| TN-021 | 3/4" | 3/4" | 15/32" | 1-1/4" | 1-1/4" | ||
| TN-022 | 13/16" | 7/8" | 9/16" | 1-1/4" | 1-1/2" | ||
| TN-023 | 3/4"-10 | 3/4"-10 | 7/8" | 7/8" | 9/16" | 1-1/2" | 1-1/2" |
| TN-024 | 1" | 7/8" | 9/16" | 1-5/8" | 1-1/2" |
|
|

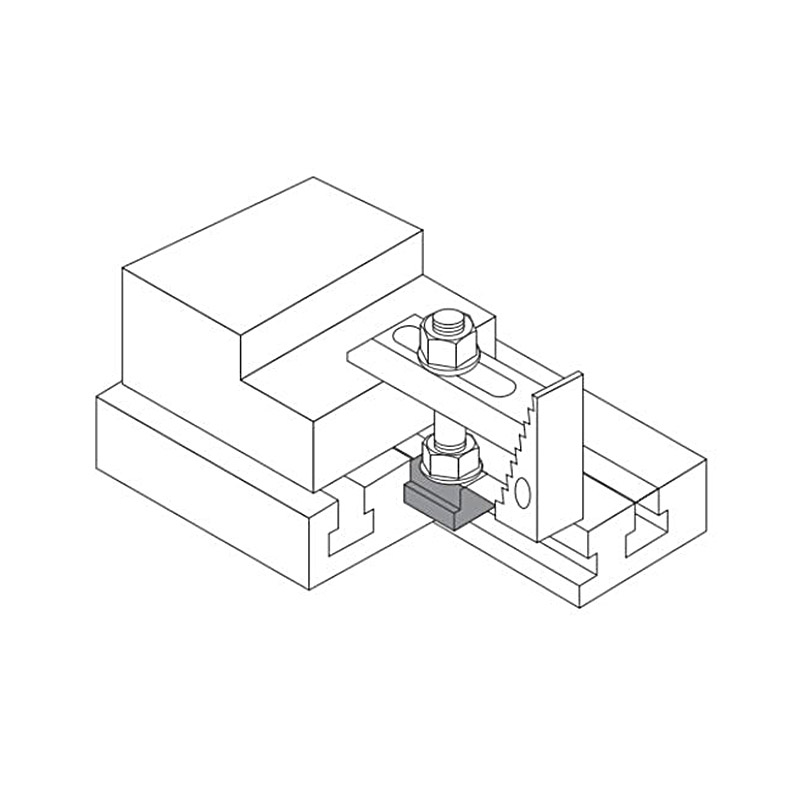

T型螺母使用方法示意图
