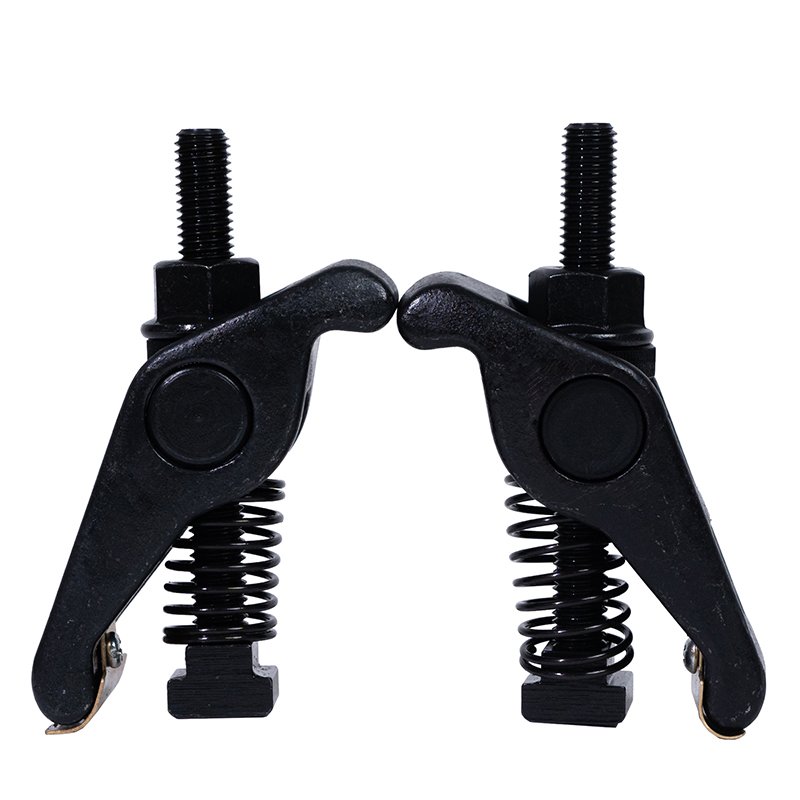

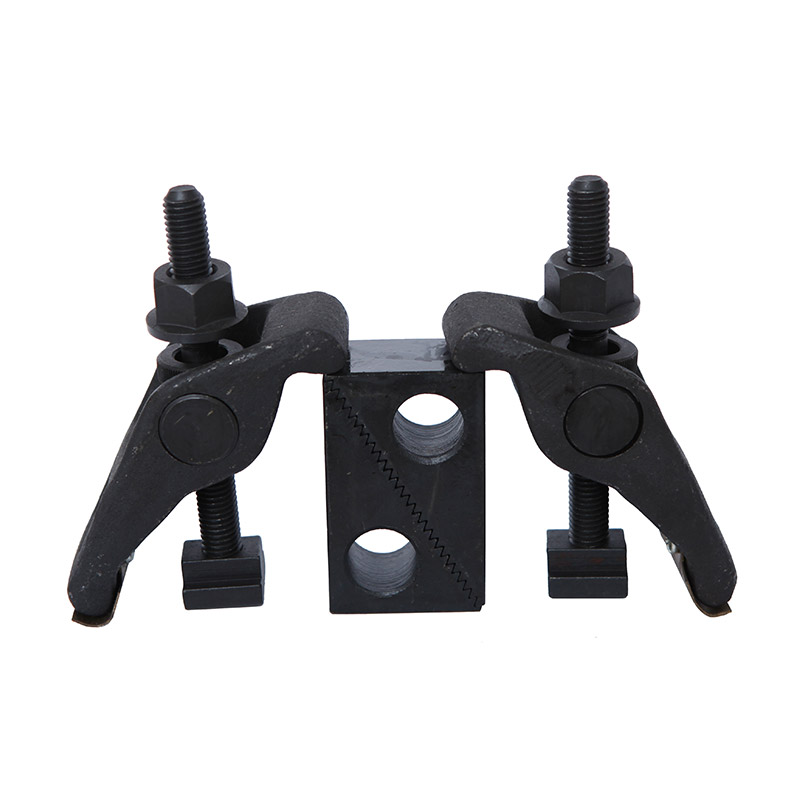

可自由调整压板高度，以方便夹持工件。
使用方式简易，可稳定有效的固定工作物。
材质: S45C
硬度: HRC32°-35
表面处理: 发黑防锈处理。
| 货号 Order No. | 规 格 Model | T型尺寸 | 螺纹尺寸 | 外观尺寸 LxWxH |
|---|---|---|---|---|
| UCK-001 | M10x12mm | 12mm | 10mm | 115x45x35mm |
| UCK-002 | M10x14mm | 14mm | 10mm | 115x45x35mm |
| UCK-003 | M12 x14mm | 14mm | 12mm | 115x45x35mm |
| UCK-004 | M12x16mm | 16mm | 12mm | 115x45x35mm |
| UCK-005 | M14x16mm | 16mm | 14mm | 115x45x35mm |
| UCK-006 | M14x18mm | 18mm | 14mm | 115x45x35mm |
| UCK-007 | M16x18mm | 18mm | 16mm | 125x50x42mm |
| UCK-008 | M16x20mm | 20mm | 16mm | 125x50x42mm |
| UCK-009 | M18x20mm | 20mm | 18mm | 150x58x53mm |
| UCK-010 | M18x22mm | 22mm | 18mm | 150x58x53mm |
| UCK-011 | M20x22mm | 22mm | 20mm | 150x58x53mm |
| UCK-012 | M20x24mm | 24mm | 20mm | 150x58x53mm |
| 货号 Order No. | 规 格 Model | T型尺寸 | 螺纹尺寸 | 外观尺寸 LxWxH |
|---|---|---|---|---|
| UCK-101 | 3/8"-16 x 7/16" | 7/16" | 3/8"-16 | 115x45x35mm |
| UCK-102 | 3/8"-16 x 1/2" | 1/2" | 3/8"-16 | 115x45x35mm |
| UCK-103 | 3/8"-16 x 9/16" | 9/16" | 3/8"-16 | 115x45x35mm |
| UCK-104 | 1/2"-13 x 9/16" | 9/16" | 1/2"-13 | 115x45x35mm |
| UCK-105 | 1/2"-13 x 5/8" | 5/8" | 1/2"-13 | 115x45x35mm |
| UCK-106 | 1/2"-13 x 11/16" | 11/16" | 1/2"-13 | 115x45x35mm |
| UCK-107 | 5/8"-11 x 11/16" | 11/16" | 5/8"-11 | 125x50x42mm |
| UCK-108 | 5/8"-11 x 3/4" | 3/4" | 5/8"-11 | 125x50x42mm |
| UCK-109 | 5/8"-11 x 13/16" | 13/16" | 5/8"-11 | 150x58x53mm |
| UCK-110 | 3/4"-10 x 7/8" | 7/8" | 3/4"-10 | 150x58x53mm |
| UCK-111 | 3/4"-10 x 13/16" | 13/16" | 3/4"-10 | 150x58x53mm |
| UCK-112 | 3/4"-10 x 1" | 1" | 3/4"-10 | 150x58x53mm |
